We precisely manage process processes such as high-quality graphene prepregs manufactured by ourselves, improved durability and torsional rigidity through the EPM method, and center measurement jigs using lasers. We test and produce up to 50% more severe conditions than regulations using our own EN test equipment.

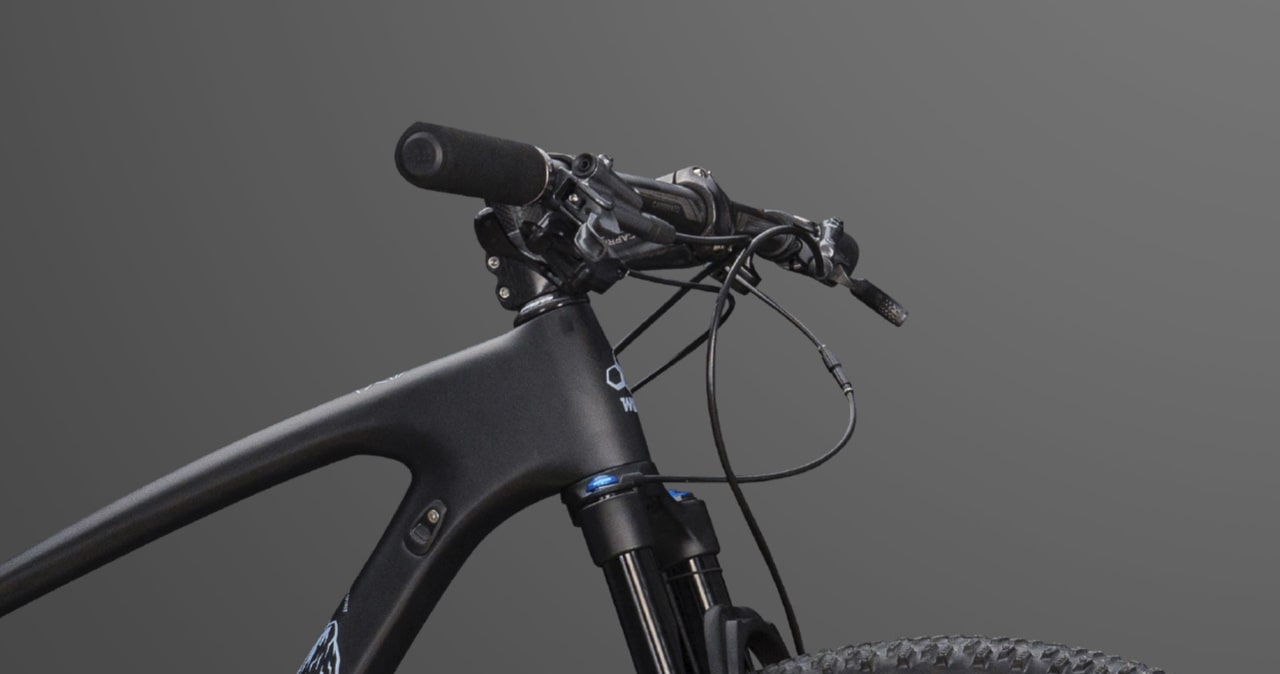

Tapered head tube for precise steering and stiffness, wide BB for improved pedaling power transmission, and elliptical seatstay design for a comfortable ride without losing lateral stiffness, so you don't miss any part to improve your performance.
Wiawis MTB has a wide range of selection points to suit consumer preferences such as height, gender and driving purpose such as 27.5”, 29” hardtail and full suspension (29”) and XS (13”) sizes. There are 27.5” for riders who prefer driving clarity, such as leisure (hardcore), and 29” for fast rolling and improved performance.
We maintain close collaboration with German designers and engineers who have experience working with leading global companies and develop high-quality bikes that support the best performance with feedback from athletes.
The main parts of the WIAWIS MTB are self-designed, manufactured and assembled. In terms of function,it provides better compatibility with each components and frames, which is also the reason for quick warranty response.
| HEXION 29 R | |
|---|---|
| FRAME | HEXION 29 CARBON |
| GROUPSET | SRAM XX1 EAGLE |
| HANDLEBAR | CARRMATO HB-MTB CARBON |
| STEM | CARRMATO ST-2 CARBON |
| SEATPOST | CARRMATO SP-27.2mm |
| FORK | FOX 29" 32K F-S BOOST 100MM |
| SADDLE | SANMARCO SHORTFIT CFX WIDE |
| LEVERS | SRAM SL-XX1 EAGLE |
| BRAKE | SRAM DB-LEVEL ULT |
| FRONT DERAILLEUR | - |
| REAR DERAILLEUR | SRAM RD-XX1 EAGLE |
| CRANK | SRAM FC-XX1 EAGLE DUB 34T |
| SPROCKET | SRAM CS-XG1299 XX1 10-52T |
| CHAIN | SRAM CN-XX1 EAGLE |
| BB | SRAM DUB PRESSFIT |
| ROTOR | SRAM CLX CENTERLOCK 160mm |
| WHEELSET | DT SWISS XRC1200 29" BOOST |
| TIRE | SCHWALBE RACING RALPH 29 2.1 |
| S | M | L | |
|---|---|---|---|
| A. Head tube Angle | 70° | 70° | 70° |
| B. Head Tube Length | 90 | 100 | 110 |
| C. Top Tube Length (Horizontal) | 570 | 595 | 620 |
| D. Stand over Height | 782 | 808 | 835 |
| E. Bottom Bracket Drop | -61 | -61 | -61 |
| F. Bottom Bracket Height | 303 | 303 | 303 |
| G. Wheel base | 1075 | 1095 | 1115 |
| H. Seat Tube Length (B-B Center to Center) | 353 | 385 | 430 |
| I. Seat Tube Length (B-B Center to Top) | 420 | 450 | 490 |
| J. Seat Tube Angle | 74.5° | 74° | 74° |
| K. Chain Stay Length | 430 | 430 | 430 |
| L. Reach | 400 | 417 | 441 |
| M. Stack | 612 | 619 | 629 |
